HP-LP Low Power

Upgrade and repair kits replacing the complete electronics of HP Woodstock and SPICE calculators – only 8-20 mA current consumption, with real time clock, plain text display and infrared printing.

← Back to home page
Woodstock Low Power board below the LED display

HP-LP Woodstock Low Power

The ultimate upgrade and repair kit for all HP Woodstock LED calculators. Only 8-20 mA current consumption when switched ON and ultra low standby current for years when in sleep mode.

HP-25 with Woodstock Low Power

Integrates a Low Power high accuracy Real Time Clock, 512 k Flash Memory for Applications and your programs and emulates all Woodstock, Spice and Classic calculators as well as the HP-67.

HP-LP Woodstock Low Power board

The LP board is placed below the LED display instead of the display driver chips, which are no longer needed.

You never have to switch OFF your calculator to save batteries.

Woodstock Low Power features

  1. Shows mathematical functions and program steps as plain text.
  2. Integrated accurate Real Time Clock with date, time, alarm time, weekday and stopwatch.
  3. Replaces the complete electronics of the original calculator including the power supply.
  4. Infrared printing diode for HP82240B printer and alarm piezo buzzer included.
  5. Easy switching between all Woodstock models and many other models like HP-34C, HP-67.
  6. Separate workspace for all models, 110 programs and 10 register sets for programmables.
  7. All HP-25 Applications programs and HP-67 Standard Pac programs already built in.
  8. PC communication for upload/download programs and data.
  9. Can be placed into HP-21, HP-22, HP-25, HP-25C, HP-27 and HP-29C hardware.

Read the Low Power users manual for a detailed description.

149,- Euro + shippingOrder by mail to sales@panamatik.de

HP-LP SPICE Low Power

For the first time ever, there is a repair kit available for the HP LED calculators of the third generation, the so called SPICE models like HP-33C or HP-34C.

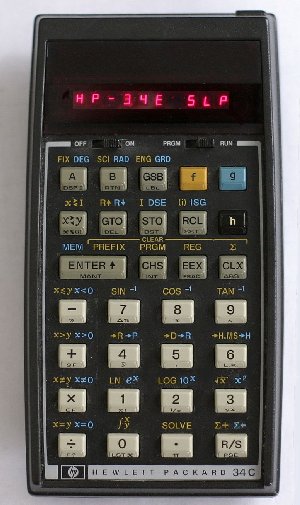

HP-34E with SPICE Low Power

Like the Woodstock Low Power circuit for the Woodstock calculators, it replaces the complete electronics of a SPICE calculator.

SPICE Low Power board

Only 8-20 mA current consumption when switched ON and ultra low standby current for years when in sleep mode.

You never have to switch OFF your calculator to save batteries.

If you ever had contact problems like missing display segments with the solderless version of these calculators, you can solve them with the new SPICE Low Power circuit.

All you have to do is to remove the power supply and all electronics and solder some wires from the Low Power circuit to the existing pads.

SPICE Low Power features

  1. Shows mathematical functions and program steps as plain text.
  2. Integrated accurate Real Time Clock with date, time, alarm time, weekday and stopwatch.
  3. Replaces the complete electronics of the original calculator including the power supply.
  4. Infrared printing diode for HP82240B printer and alarm piezo buzzer included.
  5. Easy switching between all SPICE models like HP-32E, HP-33C, HP-34C.
  6. Separate workspace for all models, 110 programs and 10 register sets for programmables.
  7. All HP-33E/33C Application programs and many HP-34C Applications already built in.
  8. PC communication for upload/download programs and data.
  9. Suitable for HP-31E/32E/33E/33C/34C/37E/38E/38C solderless and soldered hardware.

Read the SPICE Low Power users manual for a detailed description.

149,- Euro + shippingOrder by mail to sales@panamatik.de

The HP-LP connectivity kit

With the LP connectivity kit you can communicate with your Woodstock LP or Spice LP circuit and remote control all HP calculators. Save your programs on hard disk and edit them with a text editor instead of typing with the calculator buttons.

LP connectivity kit PC application

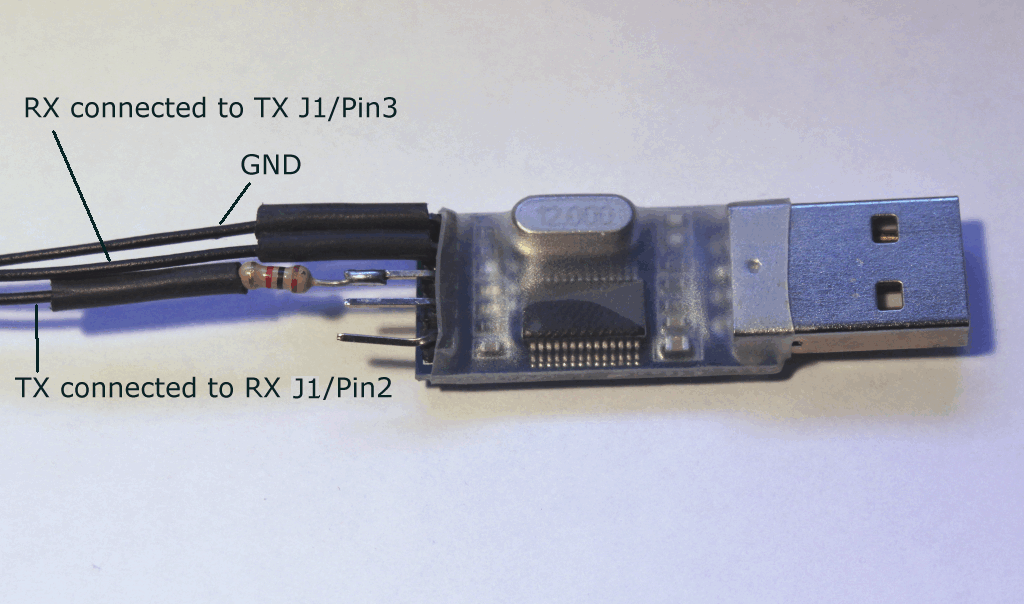

LP connection cable

You don't need vinyl overlays to use different calculators, because they are displayed on the screen and change whenever you select a new model.

All you need is the LP connection cable, which is an USB/RS232 TTL 3.3V converter, and the PC application. For proper use you have to install a small connector in the HP calculator case.

Read the LP Connectivity Manual for detailed description of its features.

Download the LP connectivity kit application, which includes also the manual for getting more information on how to connect your PC and the Woodstock LP or Spice LP calculator – and of course to learn about the In Circuit Debugger, the Flash memory Viewer, the RAM viewer, and how to save and restore or backup your programs.

LP connection cable 25,- Euro + shippingOrder by mail to sales@panamatik.de
